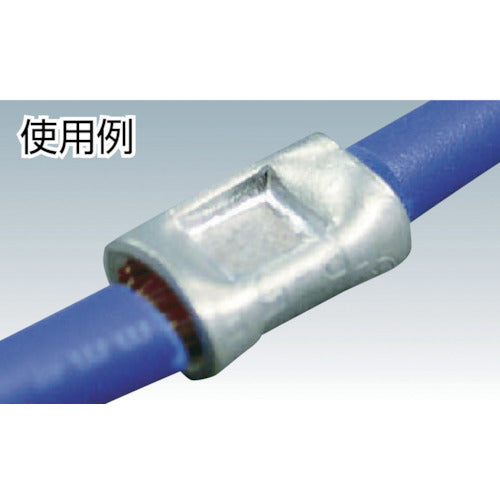

Catalog number: TP-14 Features: ● The tube has a straight shape. Applications: ● For crimping and connecting overlapping wires inside the sleeve (inside the tube). Specifications: ● Wire clamping range Stranded wire (mm2): 10.52-16.78 ● Wire clamping range AWG: 6 ● Total length (mm): 11 ● Inner dimensions (mm): 5.8 ● JIS standard product: ○ ● Compatible tools: Tools for bare crimp terminals and sleeves ● d (mm): 5.8 ● L (mm): 11.0 ● External dimensions (mm): 8.9 ● JIS C2806 compliant (except P-1.25) ● P type Material/Finish: ● Oxygen-free copper (C1020)/Electrolytic tin plating
