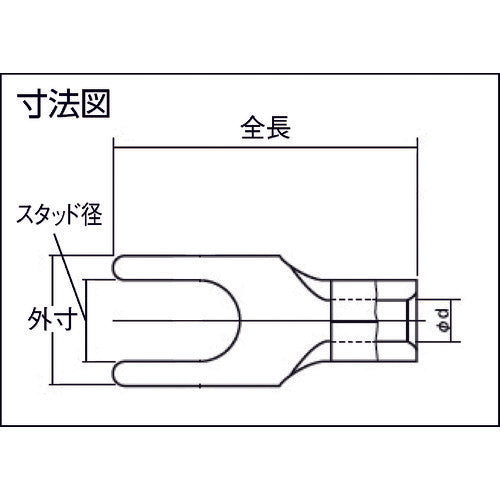

Catalog number: T-2Y-4 Features: ●One side of the mounting hole on the contact surface (tongue) is open, making this a bare crimp terminal that can be installed without completely removing the screw. Applications: ●For connecting soft steel stranded wire or solid wire. Specifications: ●Wire clamping range Solid wire (mm): 1.14-1.82 ●Wire clamping range Stranded wire (mm2): 1.04-2.63 ●Wire clamping range AWG: 16-14 ●External dimension (mm): 8 ●Stud diameter (mm): 4.3 ●Total length (mm): 16 ●Inner dimension (mm): 2.3 ●JIS standard product: × ●Color: Silver ●External dimension (mm): 8 ●Tip-open type, single wire compatible type ●Compatible tools: Bare crimp terminal, sleeve tool Material/Finish: ●Terminal: Oxygen-free copper (C1020)/Electrolytic tin plating
