TRUSCO bare crimp terminal, round type (3 pieces), stud diameter Φ6.4, total length 31.4 mm, T-R22-6S 1 PK

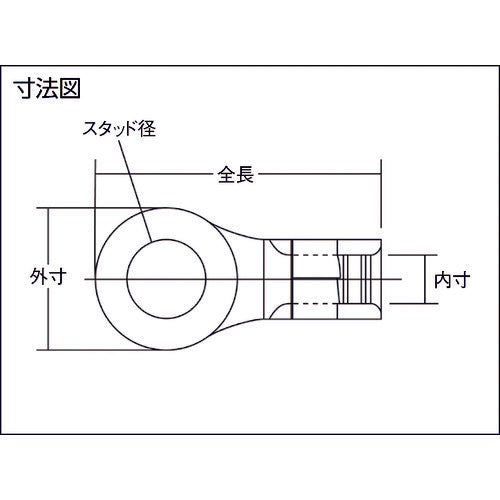

Catalog number: T-R22-6S Features: ● A bare crimp terminal with a rounded contact surface (tongue) and a mounting hole for screw fixing. Applications: ● Used to connect soft copper stranded wires. Specifications: ● Wire clamping range Stranded wire (mm2): 16.78-26.66 ● Wire clamping range AWG: 4 ● Stud diameter (mm): 6.4 ● Total length (mm): 31.4 ● Inner dimensions (mm): 7.7 ● JIS standard product: × ● Color: Silver ● External dimensions (mm): 11.8 ● Round shape (not compatible with solid wire) Material/Finish: ● Oxygen-free copper (C1020)/Electrolytic tin plating
