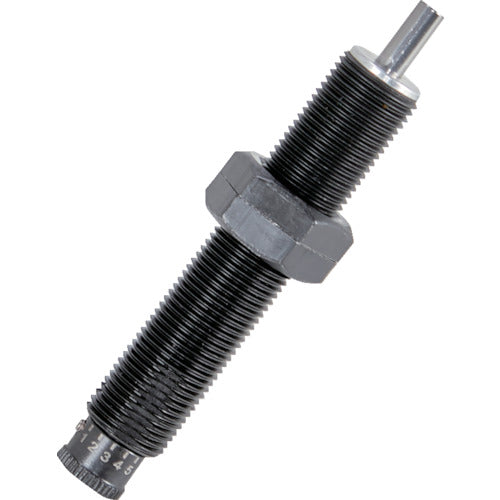

TRUSCO Adjustable Shock Absorber TBD10-07-1 1 pc

Catalog number: TBD10-07-1 Features: ● Small adjustable shock absorber with step adjustment function and fixed type are available. Applications: ● For shock absorption in light load transportation and assembly in manufacturing lines, parts processing, automatic machines, etc. Specifications: ● Stroke (mm): 7 ● Impact speed (m/s): 0.7 to 3.0 ● Adjustment function: 8 stages ● Screw size: M10 x 1.0 ● Maximum absorption energy (J): 2.1 ● Cap: None ● Small adjustable type ● Operating temperature range: -10 to 80°C Caution: ● Cannot be used in environments where liquids may splash on it or in a vacuum. ● Please use in conjunction with an external stopper and optional stopper nut.
