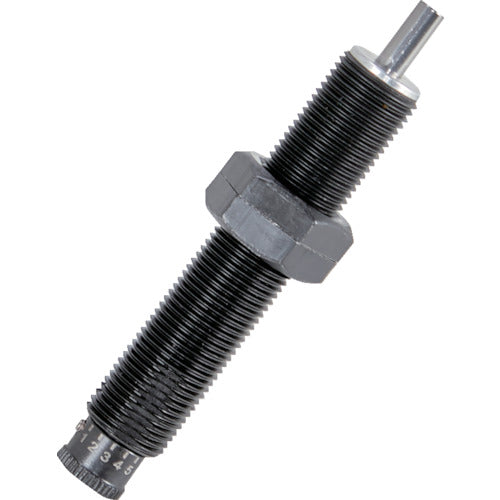

TRUSCO Adjustable Shock Absorber TBD12-10-2 1 pc

Catalog number: TBD12-10-2 Features: ● Small adjustable shock absorber. Fixed type and step adjustment function available. Applications: ● For shock absorption in light load transportation and assembly in manufacturing lines, parts processing, automatic machines, etc. Specifications: ● Stroke (mm): 10 ● Impact speed (m/s): 0.3 to 2.0 ● Adjustment function: 12 steps ● Screw size: M12 x 1.0 ● Maximum absorption energy (J): 5.9 ● Cap: None ● Small adjustable type ● Operating temperature range: -10 to 80°C Caution: ● Cannot be used in environments where liquids may splash on it or in a vacuum. ● Use in conjunction with an external stopper and optional stopper nut.
