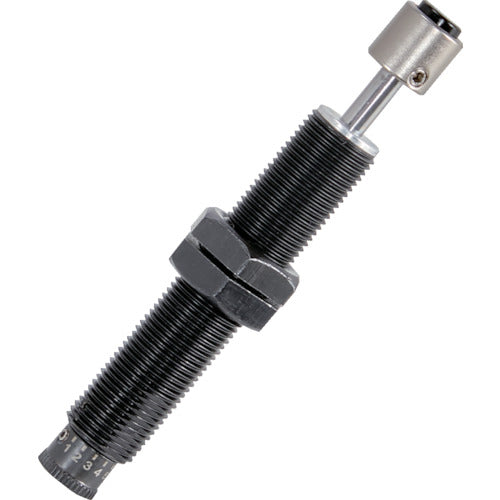

TRUSCO Adjustable Shock Absorber TBD16-12-3B 1 pc

Catalog number: TBD16-12-3B Features: ● Small adjustable shock absorber with step adjustment function and fixed type are available. Applications: ● For shock absorption in manufacturing lines, parts processing, transport and assembly of automatic machines. Specifications: ● Stroke (mm): 12 ● Impact speed (m/s): 0.1 to 1.0 ● Adjustment function: 12 steps ● Screw size: M16 x 1.5 ● Maximum absorption energy (J): 17.6 ● Cap: Yes ● Small adjustable ● Operating temperature range: -10 to 80°C Caution: ● Cannot be used in environments where liquids may splash on it or in a vacuum. ● Please use in conjunction with an external stopper and optional stopper nut.
