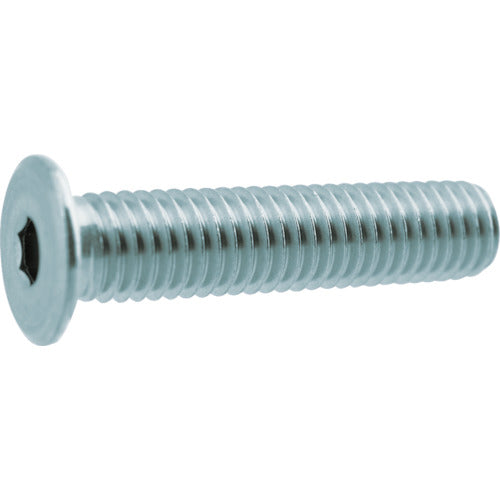

TRUSCO Ultra Low Head Cap Bolt Stainless Steel M3 x 8 8 Pieces / Hexagonal Socket Head Bolt (CAP) Y311-0308 1 PK

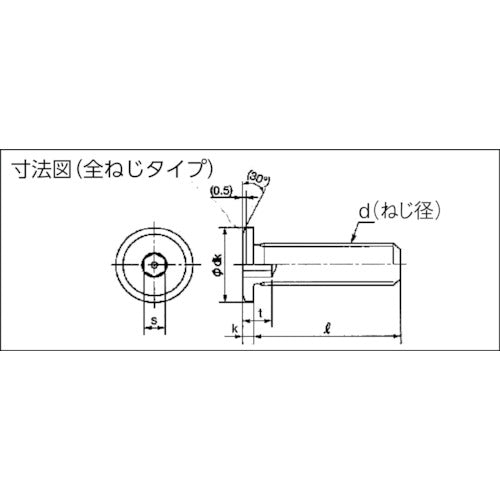

Catalog number: Y311-0308 Features: ●The head is thin, so after tightening, the head is not noticeable, resulting in a neat finish. Specifications: ●Dimensions (mm) d: M3 ●Dimensions (mm) L: 8 ●Thread pitch (mm): 0.5 ●Thread length (mm): 8 ●Strength category: None ●Thread type: Regular ●Head diameter (mm): 6 ●Head thickness (mm): 1.3 ●Hexagonal hole diagonal dimension (mm): 1.5 ●Neck length (mm): 8 ●Hexagonal hole depth (mm): 1.2 ●Package: Bolt pack (blister) ●Strength category: None Material/Finish: ●Stainless steel (equivalent to SUS304)
