TRUSCO Ultra Low Head Cap Bolt Stainless Steel M5 x 25 6 Pieces / Hexagonal Socket Head Bolt (CAP) Y311-0525 1 PK

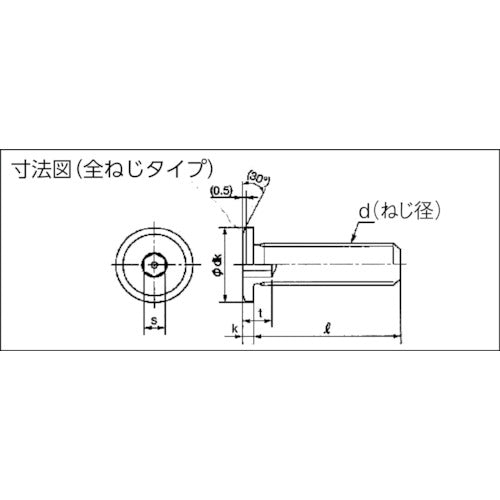

Catalog number: Y311-0525 Features: ●The head is thin, so after tightening, the head is not noticeable and the finish is neat. Specifications: ●Dimensions (mm) d: M5 ●Dimensions (mm) L: 25 ●Thread pitch (mm): 0.8 ●Thread length (mm): 25 ●Thread type: Regular ●Head diameter (mm): 9 ●Head thickness (mm): 1.5 ●Hexagonal hole diagonal dimension (mm): 3.0 ●Neck length (mm): 25 ●Hexagonal hole depth (mm): 1.8 ●Package: Bolt pack (blister) Material/Finish: ●Stainless steel (equivalent to SUS304)
