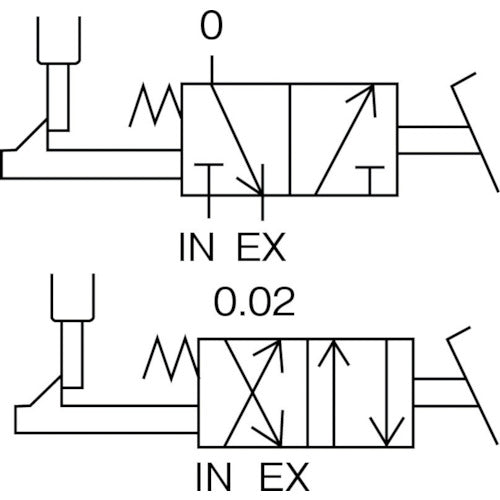

Catalogue number: TP-4PA41R-8 Features: ●Compact switching valve with excellent workability. ●Can also be used as a two-way valve. ●Can be used without lubrication. ●To switch, press once to hold ON, and press again to turn OFF. Applications: ●Air direction switching. Specifications: ●Effective cross-sectional area (mm2): 6.5 ●Connection diameter IN/OUT: Rc1/4 ●Connection diameter EX: Rc1/8 ●Number of ports: 4 ●Width (mm): 80 ●Depth (mm): 120 ●Height (mm): 48.5 ●Operating pressure (MPa): 0-0.7 ●Operating fluid: Air ●Fluid temperature: 5-60°C ●Operating pressure: 0-0.7MPa
