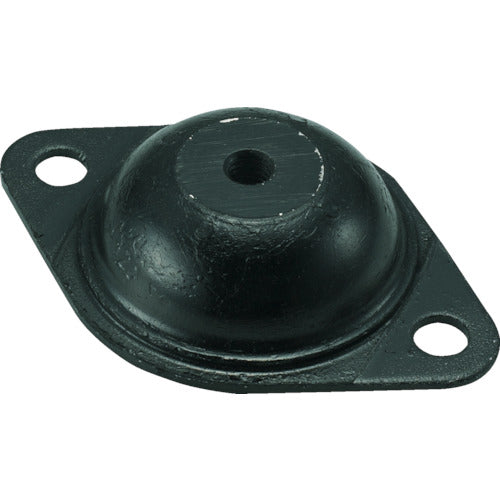

TRUSCO lightweight anti-vibration rubber, load capacity 32.1 kgf, metal fitting outer dimensions 90 mm, TK202, 1 piece

Catalog number: TK202 Features: ●An anti-vibration rubber with a large degree of freedom in the rubber part and a low spring constant, which is effective in preventing vibration over a wide range of vibration frequencies. ●Compact shape and low overall height provide stability to the machine. ●Easy to install and does not require anchors. Applications: ●Vibration prevention for various industrial machines. ●Small machine tools, prime movers, wind and hydraulic machines, chemical machines, general industrial machines, precision instruments, etc. Specifications: ●Spring constant (N/mm): 98.0 ●Allowable load (N): 295 ●Rubber height (mm): 20 ●Mounting hole diameter (mm): 8 ●Mounting pitch (mm): 70 ●Rubber hardness: 47° ●External dimensions (mm): 90 ●Allowable load (kgf): 32.1 Materials/Finish: ●Rubber: Natural rubber (NR) ●Metal fittings: General structural rolled steel
