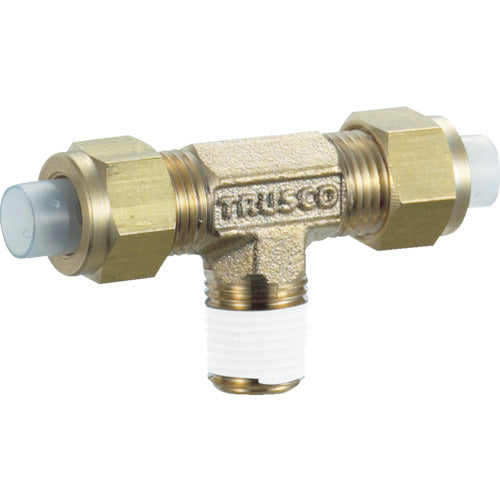

TRUSCO Pipe Fitting Quick Seal Fitting Tee Φ10 x 6.5 Nominal R1/4 TS-10X65-02T 1 pc

Catalog number: TS-10X65-02T Features: ●The threads are sealed. ●Excellent pressure resistance and vibration resistance. Applications: ●For pneumatic, hydraulic, and water pressure. Specifications: ●Compatible tube outer diameter (mm): 10 ●Compatible tube inner diameter (mm): 6.5 ●Nominal diameter: R1/4 ●Connection port size: R1/4 ●Type: Tee ●Used fluid: Water, air, oil ●Compatible tube size outer diameter x inner diameter (mm): 10 x 6.5 ●Liquid temperature: 0 to 70°C ●Used pressure: 5MPa ●Sleeve: Nylon Material/Finish: ●Brass (C3771) Caution: ●Tube is attached by screwing.
