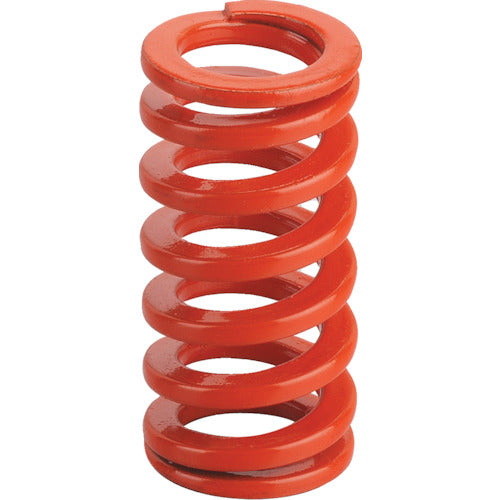

TRUSCO mold spring coil spring for medium deflection outer diameter 26.0Φ free length 225mm T-SSWS26-225 1 pc

Catalog number: T-SSWS26-225 Features: ●We offer a wide lineup that takes into consideration installation space, load, and number of uses. Applications: ●For press molds and plastic molds. Specifications: ●Outer diameter (mm): 26.0 ●Inner diameter (mm): 16.5 ●Free length (mm): 225 ●Spring constant (N/mm): 6.32 ●D (mm): 26.0 ●L (mm): 225 ●d (mm): 16.5 ●Identification color: Orange Material/Finish: ●Equivalent to SWOSC-V
