TRUSCO mold spring coil spring medium load outer diameter 70mm free length 300mm T-SSWM70-300 1 piece
TRUSCO mold spring coil spring medium load outer diameter 70mm free length 300mm T-SSWM70-300 1 piece
Regular price
¥8,886
Regular price
Sale price
¥8,886
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

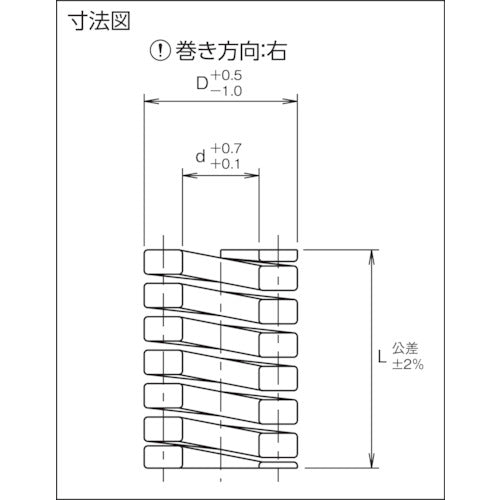

Catalog number: T-SSWM70-300 Features: ●We offer a wide lineup that takes into consideration installation space, load, and number of uses. Applications: ●For press molds and plastic molds. Specifications: ●Outer diameter (mm): 70 ●Inner diameter (mm): 38.5 ●Free length (mm): 300 ●Spring constant (N/mm): 86.8 ●D (mm): 70 ●L (mm): 300 ●d (mm): 38.5 ●Spring constant {kgf/mm}: {8.85} ●Identification color: Red Material/Finish: ●Equivalent to SWOSC-V
