TRUSCO mold spring coil spring medium load outer diameter 70mm free length 70mm T-SSWM70-70 1 piece

TRUSCO mold spring coil spring medium load outer diameter 70mm free length 70mm T-SSWM70-70 1 piece

JAN：4550414174584 　
Die Springs Machine tools Mold peripherals Mold supplies TRUSCO Bolt 01
¥3,073
¥3,073
Sale Sold out
Shipping calculated at checkout.

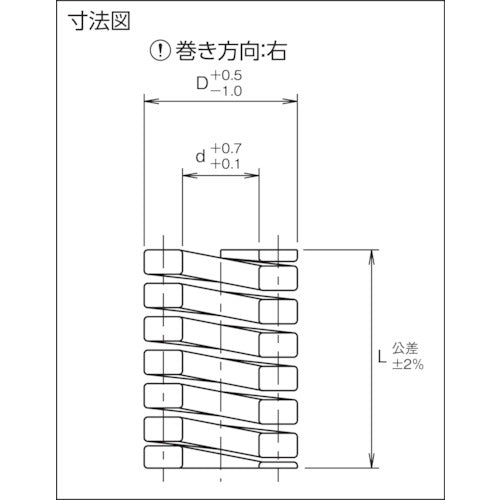

Catalog number: T-SSWM70-70 Features: ●We offer a wide lineup that takes into consideration installation space, load, and number of uses. Applications: ●For press molds and plastic molds. Specifications: ●Outer diameter (mm): 70 ●Inner diameter (mm): 38.5 ●Free length (mm): 70 ●Spring constant (N/mm): 372 ●D (mm): 70 ●L (mm): 70 ●d (mm): 38.5 ●Spring constant {kgf/mm}: {37.90} ●Identification color: Red Material/Finish: ●Equivalent to SWOSC-V
View full details
