トラスコ中山（株）

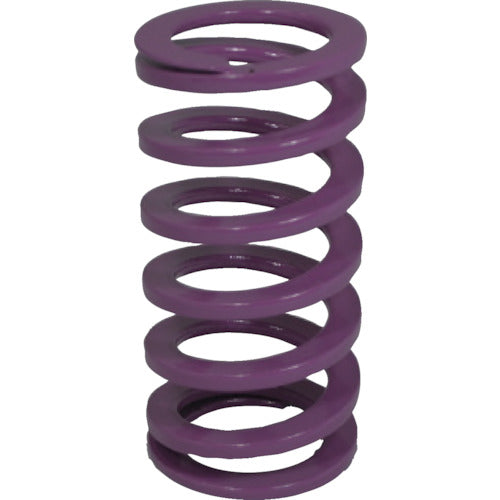

TRUSCO mold spring coil spring for very light loads, outer diameter 16Φ, free length 35mm, T-SSWC16-35, 1 piece
TRUSCO mold spring coil spring for very light loads, outer diameter 16Φ, free length 35mm, T-SSWC16-35, 1 piece
Regular price
¥293
Regular price
Sale price
¥293
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Catalog number: T-SSWC16-35 Features: ●We offer a wide lineup that takes into consideration installation space, load, and number of uses. Applications: ●For press molds and plastic molds. Specifications: ●Outer diameter (mm): 16.0 ●Inner diameter (mm): 9.5 ●Free length (mm): 35 ●Spring constant (N/mm): 6.54 ●D (mm): 16.0 ●L (mm): 35 ●d (mm): 9.5 ●Identification color: Purple Material/Finish: ●Equivalent to SWOSC-V
