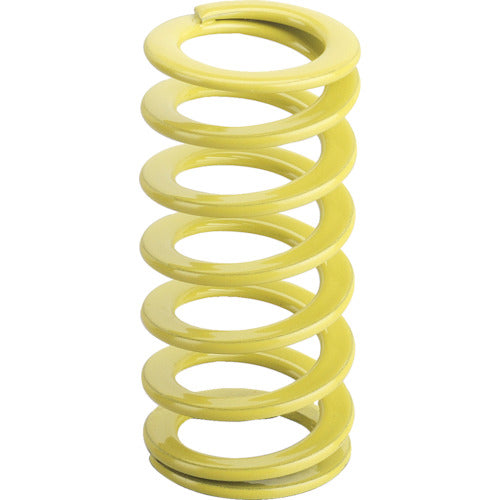

TRUSCO Mold Spring Coil Spring for Extra-Large Deflection Outer Diameter 12.5mm Free Length 20mm T-SSWY12.5-20 1 pc

Catalog number: T-SSWY12.5-20 Features: ●We offer a wide lineup that takes into consideration installation space, load, and number of uses. Applications: ●For press molds and plastic molds. Specifications: ●Outer diameter (mm): 12.5 ●Inner diameter (mm): 8.5 ●Free length (mm): 20 ●Spring constant (N/mm): 3.09 ●D (mm): 12.5 ●L (mm): 20 ●d (mm): 8.5 ●Identification color: Yellow green Material/Finish: ●Equivalent to SWOSC-V
