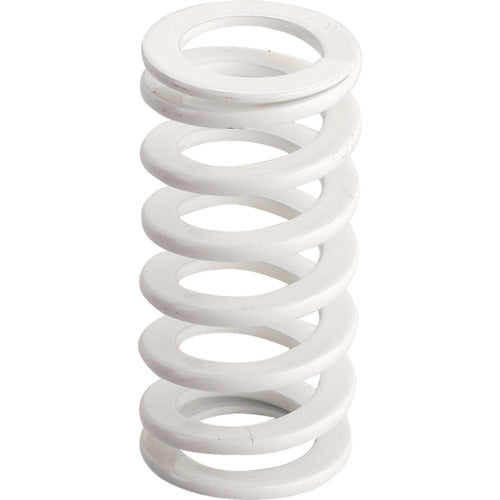

TRUSCO mold spring coil spring for ultra-high deflection outer diameter 37 mm free length 160 mm T-SSWR37-160 1 pc

Catalog number: T-SSWR37-160 Features: ●We offer a wide lineup that takes into consideration installation space, load, and number of uses. Applications: ●For press molds and plastic molds. Specifications: ●Outer diameter (mm): 37.0 ●Inner diameter (mm): 26.0 ●Free length (mm): 160 ●Spring constant (N/mm): 7.35 ●D (mm): 37.0 ●L (mm): 160 ●d (mm): 26 ●Identification color: Off-white Material/Finish: ●Equivalent to SWOSC-V
