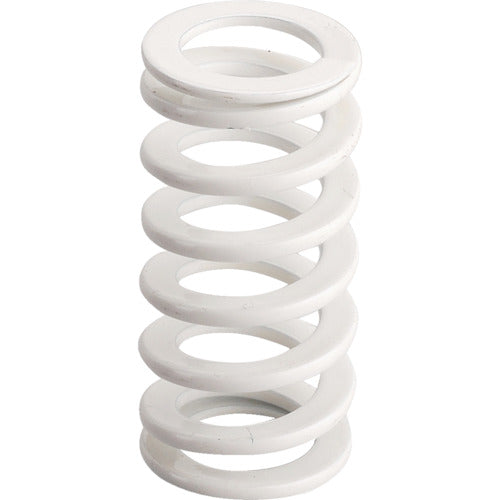

TRUSCO mold spring coil spring for high deflection outer diameter 12.5 mm free length 80 mm T-SSWR12.5-80 1 pc

Catalog number: T-SSWR12.5-80 Features: ●We offer a wide lineup that takes into consideration installation space, load, and number of uses. Applications: ●For press molds and plastic molds. Specifications: ●Outer diameter (mm): 12.5 ●Inner diameter (mm): 10.5 ●Free length (mm): 80 ●Spring constant (N/mm): 2.21 ●D (mm): 12.5 ●L (mm): 80 ●d (mm): 10.5 ●Identification color: Off-white Material/Finish: ●Equivalent to SWOSC-V
