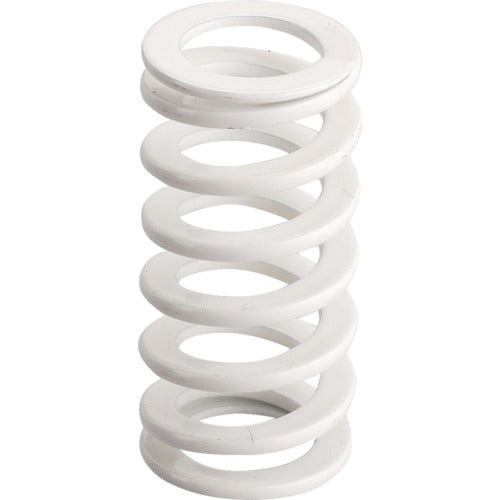

TRUSCO mold spring coil spring for high deflection outer diameter 46 mm free length 100 mm T-SSWR46-100 1 pc

Catalog number: T-SSWR46-100 Features: ●We offer a wide lineup that takes into consideration installation space, load, and number of uses. Applications: ●For press molds and plastic molds. Specifications: ●Outer diameter (mm): 46.0 ●Inner diameter (mm): 33 ●Free length (mm): 100 ●Spring constant (N/mm): 21.57 ●D (mm): 46.0 ●L (mm): 100 ●d (mm): 33 ●Identification color: Off-white Material/Finish: ●Equivalent to SWOSC-V
