TRUSCO Copper foil shield tube, hook type, 20Φ, length 5m, CPFH20-5, 1 roll

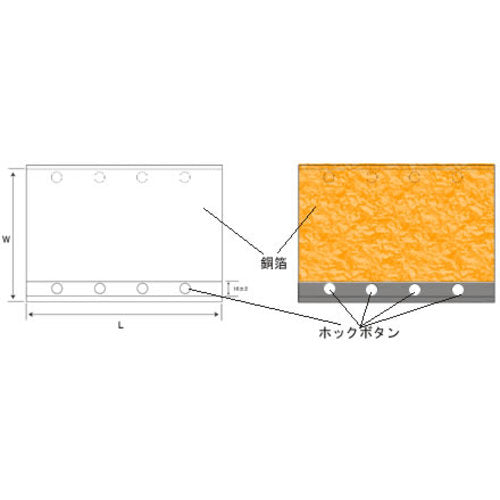

Catalog number: CPFH20-5 Features: ●Copper foil shielded tube with hook and button. ●By using a special copper sheet, it is more resistant to unwanted radiation and has a significantly improved shielding effect. ●Improved electromagnetic wave shielding effect than aluminum shielded tubes. ●Electrical resistance value is also achieved at 0.04 Ω/cm, about half that of aluminum. ●Soldering is very easy, so earth installation can be completed in a short time. Uses: ●As an EMC measure for the spread of next-generation communication standards "5G" and "IOT". Specifications: ●Color: Black ●Nominal diameter (mm): 20 ●Length (m): 5 ●Inner diameter (mm): 20 ●Usage temperature range: -15 to 85°C Materials/Finish: ●PVC sheet with polyester cloth, special copper foil sheet (0.020 mm) ●Hook and button part: POM
