TRUSCO Anti-Vibration Pad, Heat and Oil Resistant, Mini Sheet Type, 50 x 50, Thickness 10mm, Synthetic Rubber, OHS-10-50CR, 1 Sheet

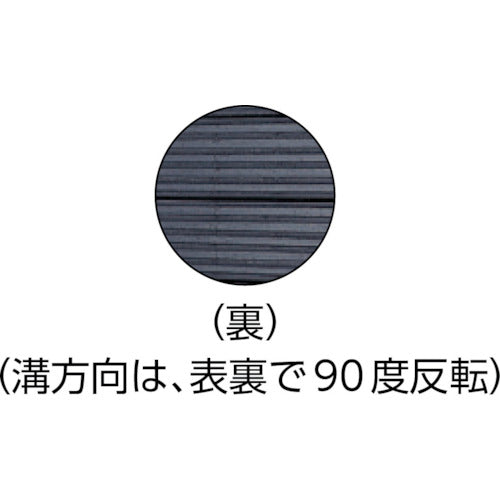

Catalog number: OHS-10-50CR Features: ●Easy to process, just cut the V-grooves at 50 mm intervals with a utility knife. (Applicable products: sizes 100 mm or larger) ●Resistant to cutting oil, machine oil, lubricating oil, etc. ●Wide range of loads, providing stable vibration damping regardless of load. Applications: ●For equipment that generates various vibrations and noise, such as machine tools, blowers, and various pump motors. ●For vibration damping of refrigerators, air conditioners, printers, etc. Specifications: ●Thickness (mm): 10 ●Width (mm): 50 ●Length (mm): 50 ●Color: Black ●Allowable surface pressure (N/[MM2]): 0.5 ●Rubber hardness: 55°±5 ●Usage temperature range: -5 to 110°C Material/Finish: ●Synthetic rubber (CR) Caution: ●Due to the rubber manufacturing process, this product will have a strong rubber smell. ●When used in a small space or in an airtight office or house, the smell may be strong. ●Components contained in rubber (oil, etc.) may transfer to objects they come into contact with, causing marks or discoloration. (Discoloration/deterioration of physical properties)
