TRUSCO Waterproof Crimp Sleeve (10 pieces) T-SB2218 1 PK

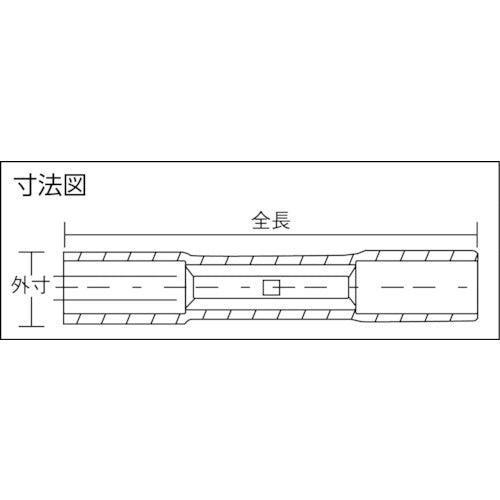

Catalog number: T-SB2218 Features: ● After crimping, heat shrink the coating with a heat gun etc. to bond the tube and the wire coating, providing waterproof and dustproof effects. Applications: ● For places where waterproofing, oil resistance, earthquake resistance, dustproofing, etc. are required. Specifications: ● Wire clamping range Stranded wire (mm2): 0.3, 0.5 ● Wire clamping range AWG: 22-20 ● Color: Yellow transparent ● Total length (mm): 25 ● External diameter (mm): 2.9 ● Internal dimension (mm): 1.4 ● JIS standard product: × ● Compatible tool: NH82A (Nichifu dedicated tool) ● L (mm): 25 ● Rated voltage: 600V ● Rated current: 19A (1.25mm squared), 27A (2.0mm squared), 49A (5.5mm squared) ● Maximum operating temperature: 105°C Materials/Finish: ● Shrink tube: High density polyethylene ● Bare crimp sleeve: Oxygen-free copper (C1020)
