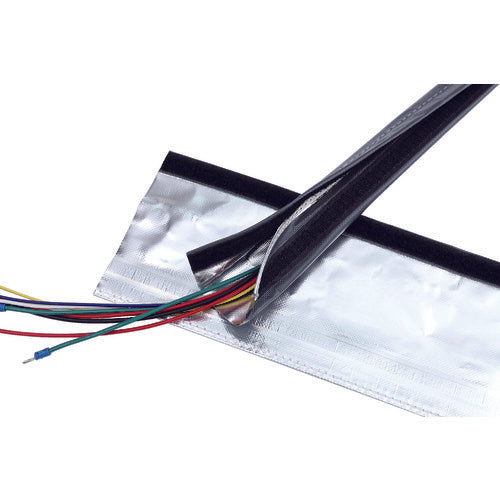

TRUSCO electromagnetic wave shielding bundling tube, magic type, 70Φ5m, MTF-70-5-R2, 1 roll

Catalog number: MTF-70-5-R2 Features: ● Wire bundling tube for electromagnetic noise protection. ● The aluminum foil part is 0.02 mm thick, so you can expect sufficient shielding effect. (Depends on the usage environment.) ● Velcro type that can be easily attached without tools and has good sealing properties. ● Branch wiring can be easily removed. ● Can be easily retrofitted even after wiring between devices. ● Ideal for applications that require frequent removal and attachment, such as bundling short lengths, inspecting and changing wiring. ● Comes with earth braided wire (tin-plated soft copper wire). ● RoHS directive compliant product. Uses: ● For noise protection of wiring. ● As a wire bundling tube Specifications: ● Nominal diameter (mm): 70 ● Length (m): 5 ● Thickness (mm): 0.28 ● Operating temperature range (℃): -15 to 60 ● For indoor use ● Operating temperature range: -15 to 60℃ ● Aluminum foil thickness: 0.02mm ● RoHS directive compliant product. ● Passed the railway vehicle material combustion test (flame retardant) Material/Finish: ● Flame retardant soft vinyl chloride with PET cloth + aluminum foil (UL94VTM-0 equivalent) ● Polycarbonate-based urethane resin (Velcro part)
