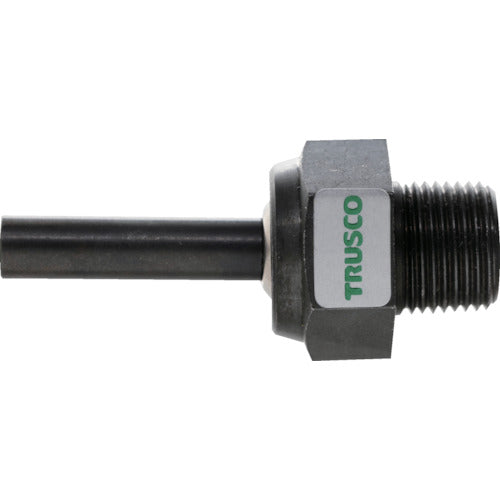

TRUSCO High Pressure Coolant Nozzle PT3/8 L30 TCHP3-30 1 pc

Catalogue number: TCHP3-30 Features: ● Metal nozzle that can withstand the high water pressure when flowing coolant. ● The nozzle angle can be adjusted within a range of ±35°. ● Compared to plastic nozzles, it can maintain its position even at high flow rates. ● Strong water pressure and volume of water on the cutting edge results in a beautiful finish on the finished surface of the workpiece that was generated during processing. ● Heat is rapidly cooled, so the cutting edge lasts longer. Specifications: ● Thread dimensions: PT3/8 ● Nozzle length (mm): 30 ● Orifice diameter (mm): 6 ● Maximum operating pressure 3.0Mpa Material/Finish: ● Steel
