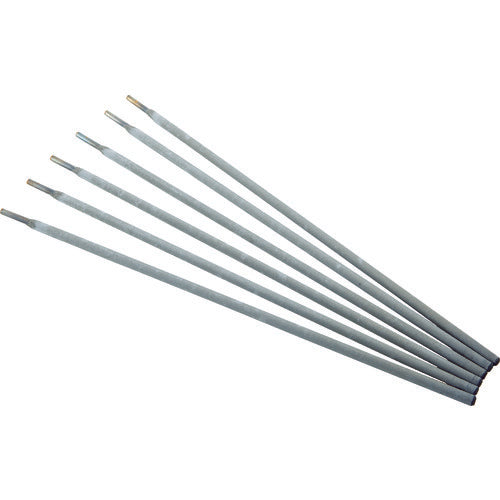

TRUSCO All-Position Welding Rod for High Tensile Steel Core Wire Diameter 4.0mm Rod Length 400mm 500g TSL55-405 1 Box

Catalog number: TSL55-405 Features: ●The weld metal exhibits extremely excellent mechanical properties. ●Good workability in all positions, slag removability, and bead appearance. ●Good crack resistance, can be used for welding thick high-tensile steel plates and medium and high carbon steel. Applications: ●Welding of 490MPa and 540MPa class high-tensile steel for shipbuilding, bridges, architecture, pressure vessels, etc. Specifications: ●Core diameter (mm): 4 ●Rod length (mm): 400 ●Applicable plate thickness (mm): 6.0-35.0 ●Current range (A) downward: 125-180 ●Current range (A) vertical upward/upward: 110-170 ●Approximate number (pieces): 9 ●Rod end color: Vermilion ●JIS Z3211 E4916 H15 standard product Caution: ●Use with excessive current may cause spatter (droplet scattering) and other problems that may worsen workability, so please observe the appropriate current range. ●(300-350 degrees for 1 hour) ●Can be welded in all positions. ●Please use in dry conditions.
