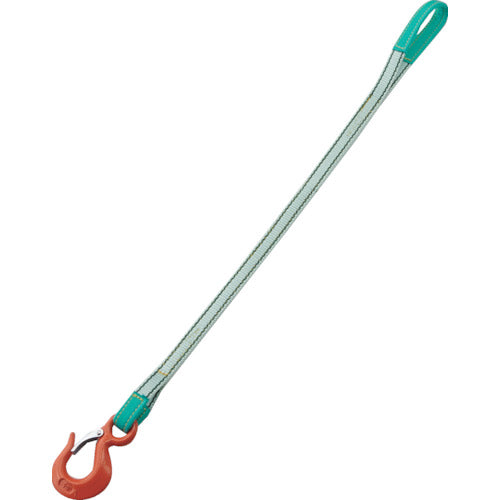

TRUSCO 1-piece belt sling set, 25mm width x 1m, maximum load capacity 1t, TPSH25-1P10 1 S

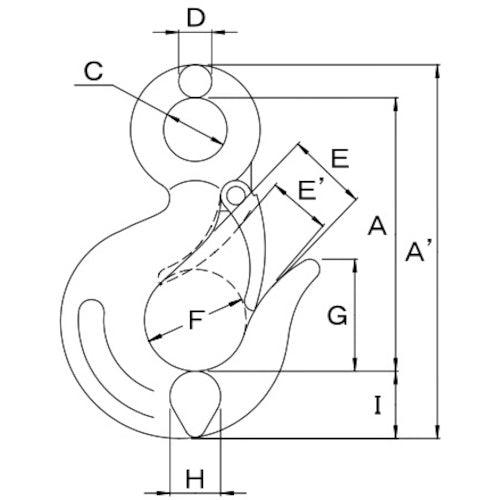

Catalog number: TPSH25-1P10 Features: ●Because it uses a belt sling, it is lightweight and improves workability. ●The hook surface is coated with a non-chrome paint that removes harmful chrome. Applications: ●For lifting and transportation at construction and civil engineering sites and various factories. ●For transporting molds, eye bolt attachments, etc. Specifications: ●Basic load capacity (t): 1 ●Belt dimensions (mm) width x thickness: 25 x 9 ●Reach (m): 1 ●Hook color: Orange ●Eye width (mm): 30 ●Eye length (mm): 210 ●Eye thickness (mm): 10 ●Sewn length (mm): 200 ●Dimension (mm) A: 147 ●Dimension (mm) B1: 108 ●Dimension (mm) B2: 25 ●Dimension (mm) F: 13 ●Dimension (mm) G: 32 ●Dimension (mm) H: 25 ●Dimension (mm) K: 40 ●Dimension (mm) L: 44 ●Dimension (mm) M: 20 ●Dimension (mm): 26 ●The belt sling uses the same belt as the TPSH series. ●One-sided hook specification●Hook: Heavy-duty hook (with spring) 1 ton Material/Finish: ●Belt sling: Polyester●Hook: Special alloy steel Set contents/Accessories: ●Belt sling x 1, hook x 1 (pre-assembled) Note: ●Please check the dimensions of the hook and confirm that it can be attached to the target object. ●In areas where sharp corners or friction of the cargo may damage fiber slings such as belt slings, be sure to use padding such as corner pads. ●Not chemical resistant. ●Belt slings with metal fittings are not JIS standard products.
