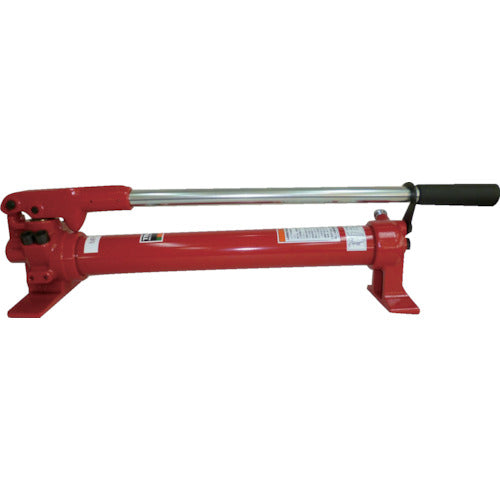

TRUSCO 2-speed manual hydraulic pump 700cc TMP-1W 1 unit

Catalog number: TMP-1W Features: ●This is a two-speed pump with automatic high and low pressure switching for both 10 and 20 tons. ●When under high load, it discharges from the low pressure side, pushing up the plunger with 6.2 times the discharge volume compared to a single type pump. ●In addition, when a load is applied, it switches to the high pressure side generating 70 MPa of power, significantly improving work efficiency. Specifications: ●Effective oil volume (L): 0.7 ●Discharge volume per operation (ml) high pressure: 2.26 ●Discharge volume per operation (ml) low pressure: 14.1 ●Maximum operating pressure (MPa) high pressure: 70 ●Maximum operating pressure (MPa) low pressure: 2.5 ●Maximum operating pressure (MPa): 70 ●Discharge port diameter: PT3/8 ●Discharge pressure (MPa) high pressure: 70 ●Discharge pressure (MPa) low pressure: 2.5 ●Maximum operating pressure: 70MPa ●Oil volume: 0.83L ●Discharge volume: 2.26 at high pressure
