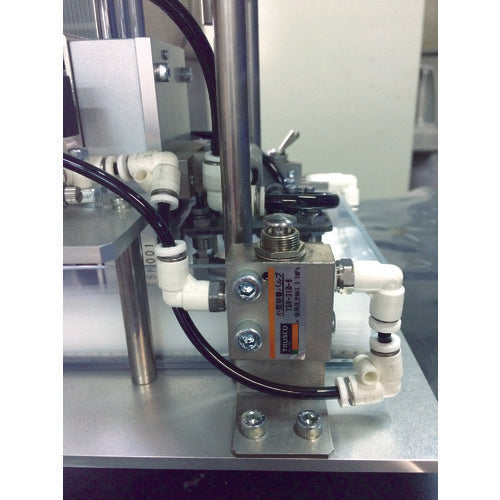

TRUSCO 3-way small switching valve 3-port 1/8 button type TSV-31B-6 1 piece

Catalog number: TSV-31B-6 Features: ● A compact switching valve that switches the flow direction of air supplied to air cylinders, etc. ● Panel mounting is possible. ● Can be used without lubrication. ● Button position is non-retaining type (spring turn). ● Compact 3-way switching valve. Applications: ● For use as a switching valve for driving air cylinders. Specifications: ● Effective cross-sectional area (mm2): 4.5 ● Connection diameter IN/OUT: Rc1/8 ● Connection diameter EX: Rc1/8 ● Connection diameter: Rc1/8 ● Number of ports: 3 ● Width (mm): 32 ● Depth (mm): 16 ● Height (mm): 45.5 ● Operating pressure (MPa): 0-0.9 ● Fluid used: Air ● Switching method: Button ● Fluid temperature: 5-60°C ● Operating pressure: 0-0.9MPa Materials/Finish: ● Body: Brass (nickel plated) ● Button: Stainless steel (SUS303)
