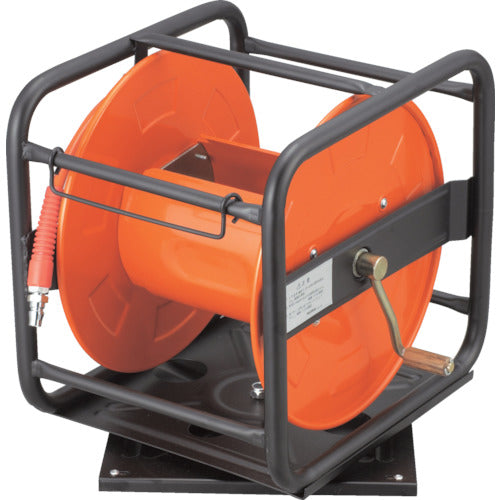

TRUSCO B-type air reel, body only, for 8.5 mm, TAB-8.5-D, 1 unit

Catalog number: TAB-8.5-D Features: * Comes with a rotating platform that is difficult to tip over, providing excellent stability. * Residual pressure is automatically released when disconnected, reducing recoil and unpleasant noise. * The winding handle is a foldable type. * Can be connected to a general coupling. (Some exceptions apply) Specifications: ● Hose inner diameter x outer diameter (mm): 8.5 x 12.5 ● Total hose length (m): 1 ● Primary installation side: TSRC-80DPC ● Secondary installation side: One-touch socket ● Primary hose length (m): 1 ● Secondary hose length (m): No hose ● Maximum operating pressure (MPa): 1.5 ● Operating pressure (MPa): 1.0 ● Width (mm): 282 ● Depth (mm): 339 ● Height (mm): 332 ● Outer diameter (mm): 12.5 ● Installation type: Stationary type ● Fluid used: Compressed air ● Primary side hose length: 1m ● Operating pressure: 1.5MPa (Adjust the pressure according to the capacity of the air hose) ● Primary side hose: Length 1m ● Operating temperature range: -10 to 60°C ● Hose winding length Hose diameter 12.5X8.5 30M
