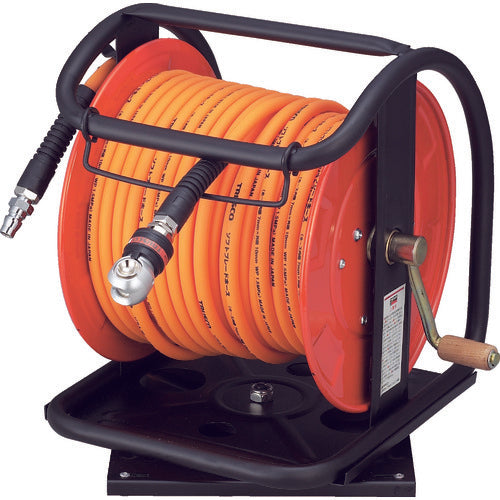

TRUSCO C-type air reel with swing coupling, 7 x 10 mm, 30 m roll, TAC-7-30N, 1 unit

Catalog number: TAC-7-30N Features: ● Comes with a rotating platform that is difficult to tip over, providing excellent stability. ● Residual pressure is automatically released when disconnected, reducing recoil and unpleasant noise. ● The winding handle is a foldable storage type. ● Can be connected to general couplings. (Some exceptions apply) ● Ultra-soft type for excellent workability. Specifications: ● Hose inner diameter x outer diameter (mm): 7.0 x 10.0 ● Total hose length (m): 30 ● Primary side mounting: TSRC-65DPC ● Secondary side mounting: TSRC-65SN ● Primary hose length (m): 1 ● Secondary hose length (m): 29 ● Maximum operating pressure (MPa): 1.5 ● Operating pressure (MPa): 1.5 ● Width (mm): 242 ● Depth (mm): 282 ● Height (mm): 289 ● Outer diameter (mm): 10 ● Installation type: With rotating table ● Operating pressure: 1.5MPa ● Primary side hose length: 1m ● Fluid used: Air ● Operating temperature range: -10 to 60°C Material/Finish: ● Hose: PVC-based elastomer
