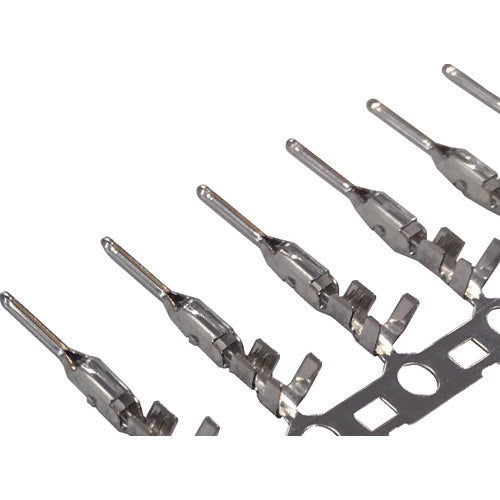

TRUSCO CB01 series M terminal for thin wire (100 pieces) P-CB01C5-010A 1 PK

Catalog number: P-CB01C5-010A Features: ●Contacts exclusively for the CB01 series. ●Available in two types to suit the size of the wire that can be used. Applications: ●For bath electrical appliances, toilet cleaners, hot water heaters, and outdoor motors. Specifications: ●Length (mm): 13.4 ●Insulation outer diameter (mm): φ1.6max ●Maximum applicable outer diameter (mm): φ1.6 ●Compatible wire (AWG): AWG22-28 ●Protection rating: IP67 ●Operating temperature range (℃): -40 to +105 ●Compatible wire (copper wire) solid wire (mm): 0.08 to 0.33 mm2 ●Protection rating: IP67
