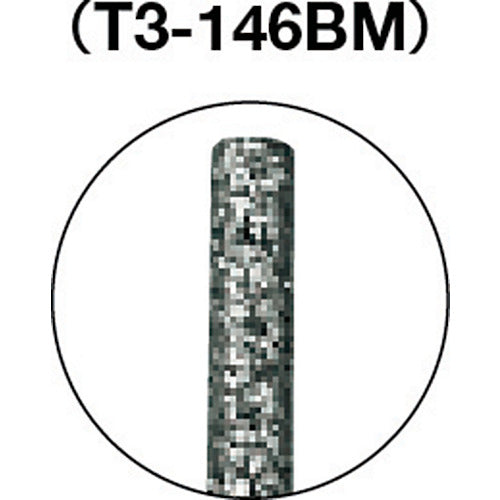

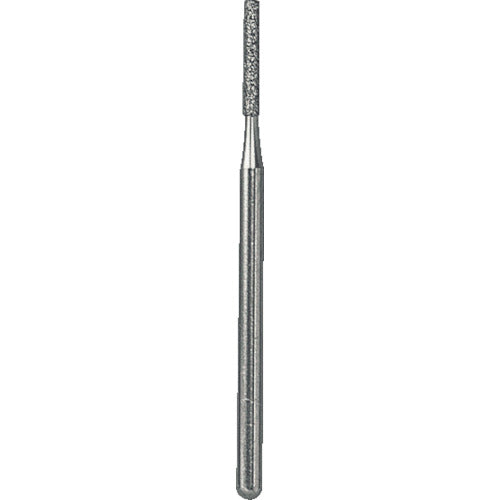

TRUSCO CBN bar Φ1.4 x blade length 10 x shaft 3 #140 T3-146BM 1 piece
TRUSCO CBN bar Φ1.4 x blade length 10 x shaft 3 #140 T3-146BM 1 piece
Regular price
¥1,196
Regular price
Sale price
¥1,196
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

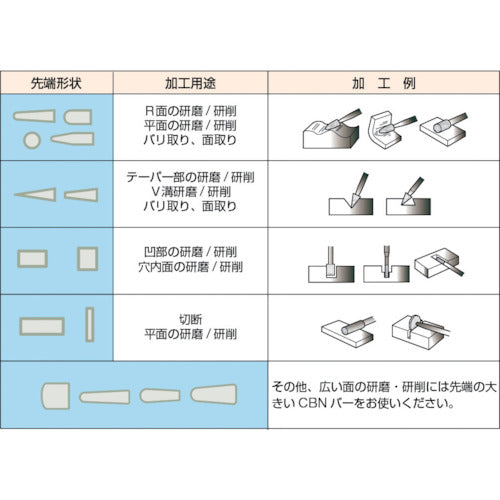

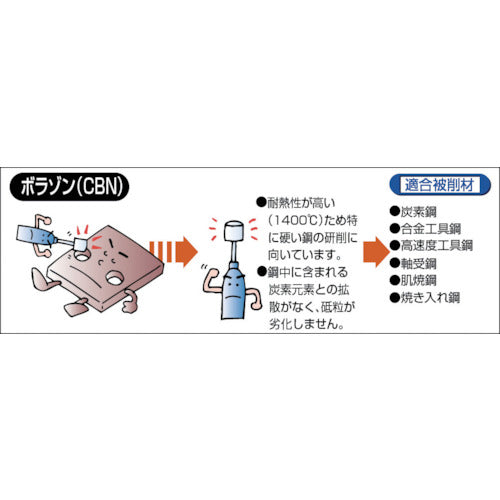

Catalog number: T3-146BM Features: ●Ideal for machining ferrous metals. ●Since it has micro-fracture (self-healing action), a stable machined surface can be obtained. ●Heat resistance is about 1400℃, which is better than diamond. Applications: ●Inner diameter grinding, chamfering, deburring. Specifications: ●Grain size (#): 140 ●Blade diameter (mm): 1.4 ●Blade length (mm): 10 ●Shaft diameter (mm): 3 ●Total length (mm): 44.5 ●Maximum operating speed (rpm): 80000 ●Suitable work material: carbon steel, high-speed steel, die steel, bearing steel, tool steel, etc. ●Suitable work material: carbon steel, high-speed steel, die steel, bearing steel, tool steel, etc. Caution: ●Always wear protective equipment such as a safety helmet and safety glasses when working. ●To prevent damage, do not press hard and use a soft touch.
