TRUSCO E-ring Stainless steel Size E-19.0 4 pieces B92-0019 1 PK
TRUSCO E-ring Stainless steel Size E-19.0 4 pieces B92-0019 1 PK
Regular price
¥530
Regular price
Sale price
¥530
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

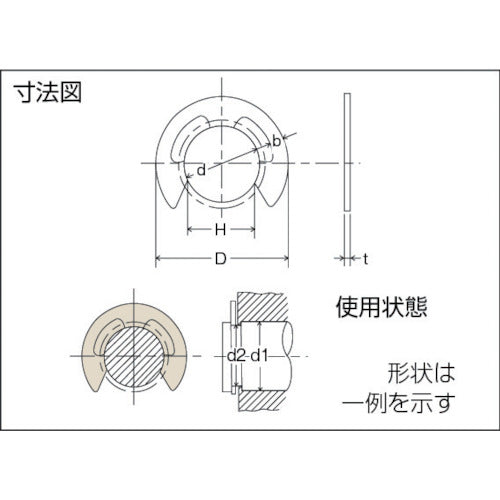

Catalog number: B92-0019 Features: ● Retaining ring to prevent shaft from slipping out in the axial direction. ● Can be attached from the radial direction to a shaft with a groove. Uses: ● To prevent slipping out. Specifications: ● Nominal diameter: E-19.0 ● Retaining ring (mm) d: 19.0 ● Retaining ring (mm) D: 37 ● Retaining ring (mm) H: 16.5 ● Retaining ring (mm) t: 1.5 ● Retaining ring (mm) b: 4.0 ● Retaining ring (mm) d1: 20.0 ● Retaining ring (mm) d2: 19.0 ● Packaging: Bolt pack (blister pack) Material/Finish: ● Stainless steel (SUS304CSP)
