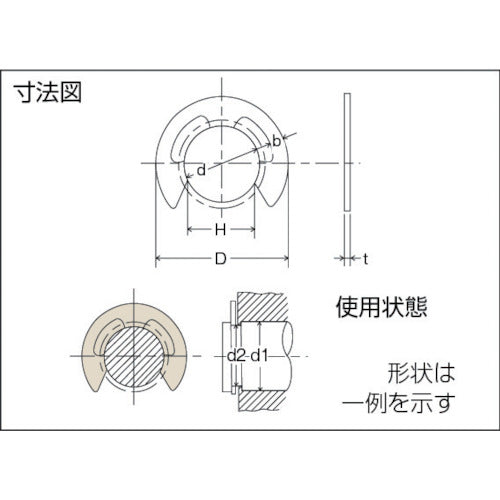

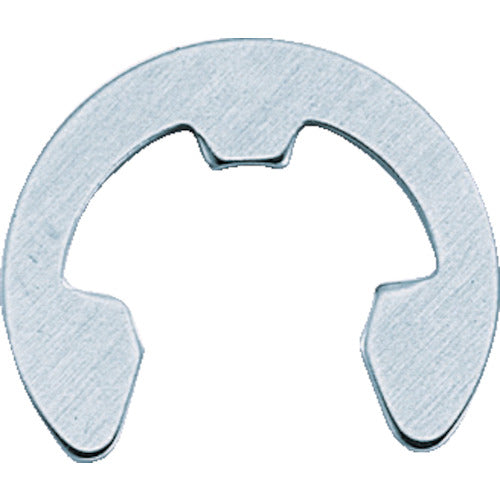

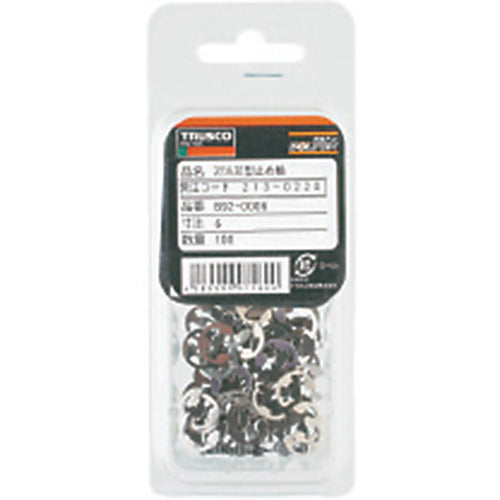

Catalog number: B92-0003 Features: ● Retaining ring to prevent shaft from slipping out in the axial direction. ● Can be attached from the radial direction to a shaft with a groove. Uses: ● To prevent slipping out. Specifications: ● Nominal diameter: E-3.0 ● Retaining ring (mm) d: 3.0 ● Retaining ring (mm) D: 7 ● Retaining ring (mm) H: 2.6 ● Retaining ring (mm) t: 0.6 ● Retaining ring (mm) b: 0.9 ● Retaining ring (mm) d1: 4.0 ● Retaining ring (mm) d2: 3.0 ● Packaging: Bolt pack (blister pack) Material/Finish: ● Stainless steel (SUS304CSP)
