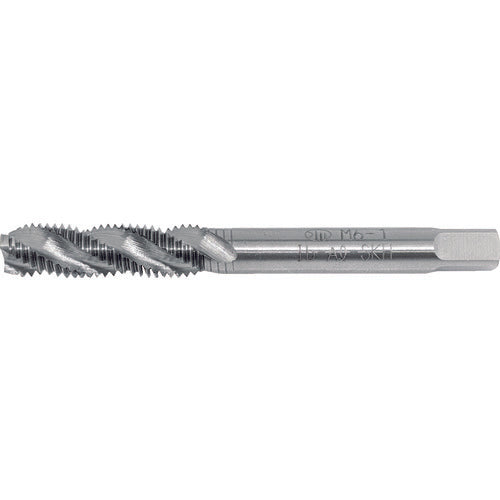

TRUSCO E-insert dedicated spiral tap M5X0.8 ESPT-M5X0.8 1 piece

Catalog number: ESPT-M5X0.8 Features: ● This tap is suitable for machining blind holes because the cutting chips come out facing upwards and are less likely to get clogged. ● This is a spiral tap exclusively for E-sert. Applications: ● Workpiece: Soft materials such as aluminum. Specifications: ● Precision: 1b class ● Thread length (mm): 24 ● Total length (mm): 60 ● Shank diameter (mm): 6.0 ● Shank square section (mm): 4.5 ● Pilot hole diameter (mm): 5.2 ● Engagement section: 2.5 threads ● Thread diameter x pitch: M5 x 0.8 ● Precision: 1b class Material/Finish: ● SKH Note: ● E-sert is a registered trademark of Tsugami Corporation.
