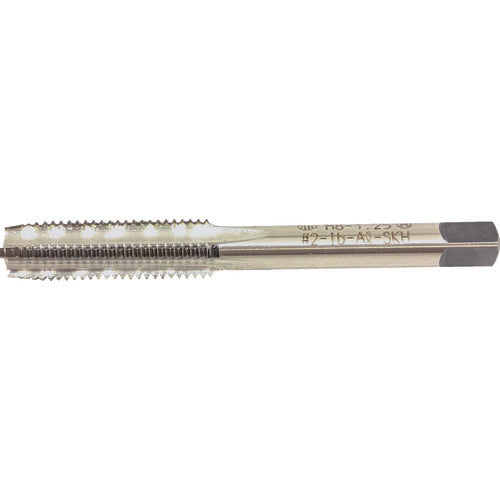

TRUSCO E-insert exclusive hand tap M5X0.8 EHTP-M5X0.8-3 1 piece

Catalog number: EHTP-M5X0.8-3 Features: ●Tip, middle, and top are sold separately. ●The engagement part is 9 threads for the tip tap, 5 threads for the middle tap, and 1.5 threads for the up tap. ●Hand tap for E-sert only. Applications: ●Workpiece: Soft materials such as aluminum. Specifications: ●Tip: Top ●Precision: 1b ●Thread length (mm): 24 ●Total length (mm): 60 ●Shank diameter (mm): 6 ●Shank square section (mm): 4.5 ●Pilot hole diameter (mm): 5.2 ●Thread diameter x pitch: M5 x 0.8 Material/Finish: ●SKH Note: ●E-sert is a registered trademark of Tsugami Corporation.
