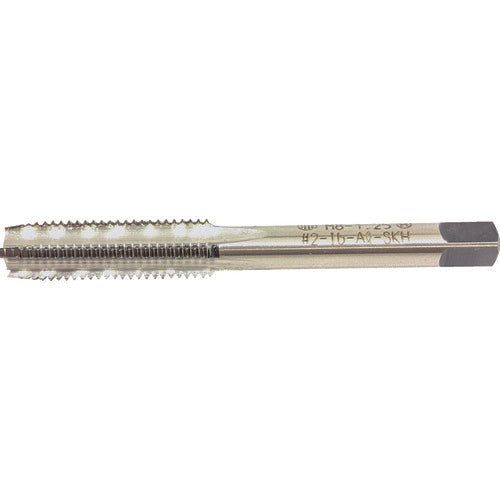

TRUSCO E-insert dedicated hand tap medium M4X0.7 EHTP-M4X0.7-2 1 piece
TRUSCO E-insert dedicated hand tap medium M4X0.7 EHTP-M4X0.7-2 1 piece
Regular price
¥3,826
Regular price
Sale price
¥3,826
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Catalog number: EHTP-M4X0.7-2 Features: ●Tip, middle, and top are sold separately. ●The engagement part is 9 threads for the tip tap, 5 threads for the middle tap, and 1.5 threads for the up tap. ●Hand tap for E-sert only. Applications: ●Workpiece: Soft materials such as aluminum. Specifications: ●Tip: Medium ●Accuracy: 1b ●Thread length (mm): 22 ●Total length (mm): 55 ●Shank diameter (mm): 5.5 ●Shank square section (mm): 4.5 ●Pilot hole diameter (mm): 4.2 ●Thread diameter x pitch: M4 x 0.7 ●Accuracy: 1b class Material/Finish: ●SKH Note: ●E-sert is a registered trademark of Tsugami Corporation.
