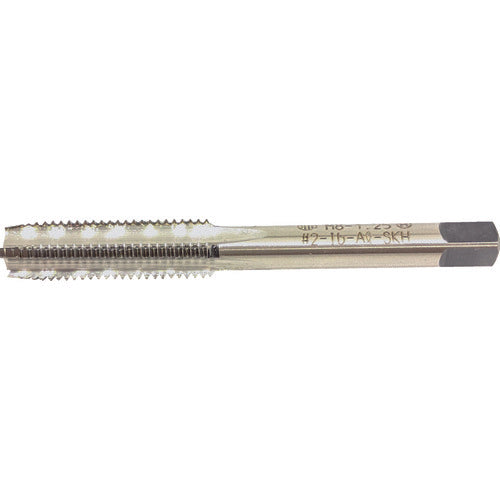

TRUSCO E-insert exclusive hand tap tip M10X1.5 EHTP-M10X1.5-1 1 piece

Catalog number: EHTP-M10X1.5-1 Features: ●Tip, middle, and top are sold separately. ●The engagement part is 9 teeth for the tip tap, 5 teeth for the middle tap, and 1.5 teeth for the up tap. ●Hand tap for E-sert only. Applications: ●Workpiece: Soft materials such as aluminum. Specifications: ●Tip: Tip ●Precision: 1b ●Thread length (mm): 38 ●Total length (mm): 82 ●Shank diameter (mm): 8.5 ●Shank square section (mm): 6.5 ●Pilot hole diameter (mm): 10.5 ●Thread diameter x pitch: M10 x 1.5 Material/Finish: ●SKH Note: ●E-sert is a registered trademark of Tsugami Corporation.
