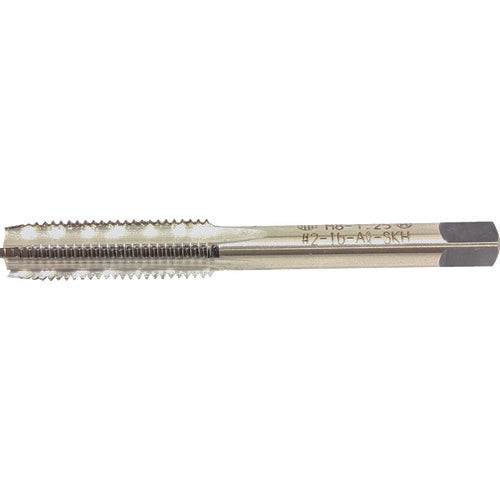

TRUSCO E-insert exclusive hand tap tip M8X1.25 EHTP-M8X1.25-1 1 piece

Catalog number: EHTP-M8X1.25-1 Features: ●Tip, middle, and top are sold separately. ●The engagement part is 9 teeth for the tip tap, 5 teeth for the middle tap, and 1.5 teeth for the up tap. ●Hand tap for E-sert only. Applications: ●Workpiece: Soft materials such as aluminum. Specifications: ●Tip: Tip ●Precision: 1b ●Thread length (mm): 32 ●Total length (mm): 75 ●Shank diameter (mm): 7 ●Shank square section (mm): 5.5 ●Pilot hole diameter (mm): 8.4 ●Thread diameter x pitch: M8 x 1.25 Material/Finish: ●SKH Note: ●E-sert is a registered trademark of Tsugami Corporation.
