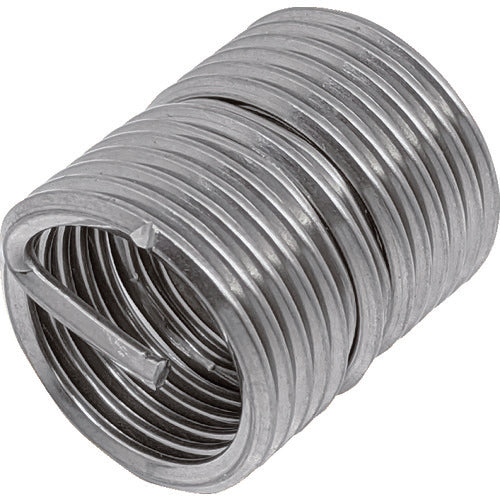

TRUSCO E-sert lock insert LM10X1.5 1DNS 3 pieces ER-M1015X1DNS 1 PK

Catalog number: ER-M1015X1DNS Features: ● Standard insert function with added anti-loosening effect. ● The middle part 1-2 turns are polygonal, which tightens the bolt firmly. Applications: ● Strengthens the female thread of the base material (light alloy, die cast, cast iron, plastic, resin). Specifications: ● Suitable bolt thread: M10 x 1.5 ● Pilot hole diameter (mm): 10.3 ● Thread designation: M10 ● Thread pitch: 1.5 ● Dimensions (mm) L: 10 ● Dimensions (mm) D1: 12.63 Material/Finish: ● Stainless steel (SUS304) Note: ● E-sert is a registered trademark of Tsugami Corporation.
