TRUSCO E-sert lock insert LM8X1.25 1.5DNS 4 pieces ER-M8125X1.5DNS 1 PK

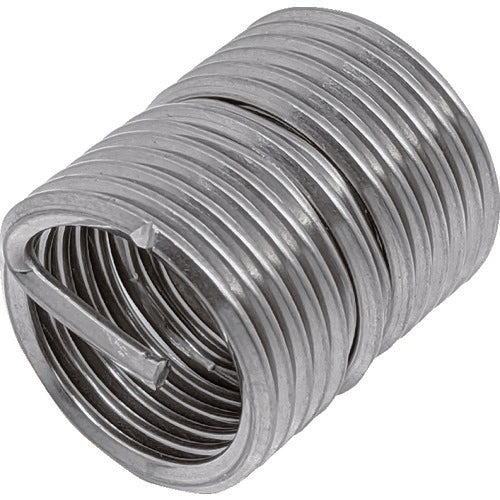

Catalog number: ER-M8125X1.5DNS Features: ●This product provides the function of the standard insert with an additional anti-loosening effect. ●The middle part 1-2 turns are polygonal, which tightens the bolt firmly. Applications: ●Reinforces the female thread of the base material (light alloy, die cast, cast iron, plastic, resin). Specifications: ●Compatible bolt thread: M8 x 1.25 ●Pilot hole diameter (mm): 8.3 ●Thread designation: M8 ●Thread pitch: 1.25 ●Dimensions (mm) L: 12 ●Dimensions (mm) D1: 10.28 Material/Finish: ●Stainless steel (SUS304) Note: ●E-sert is a registered trademark of Tsugami Corporation.
