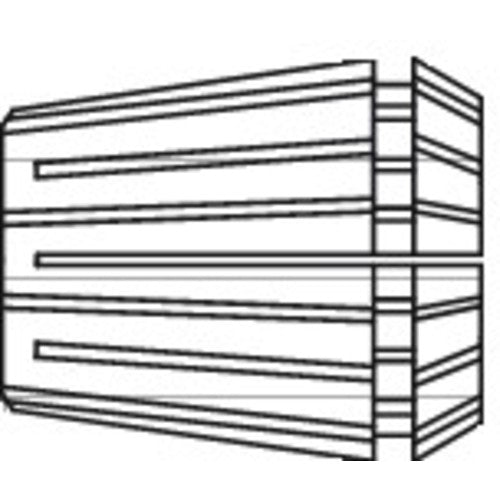

TRUSCO ER collet, outer diameter 41, total length 46, gripping 4.5-5.5, ER40-5.5, 1 piece

TRUSCO ER collet, outer diameter 41, total length 46, gripping 4.5-5.5, ER40-5.5, 1 piece

JAN：4989999876079 　
Machine tools Tooling and fixtures Tooling for BT shank Tooling Tools TRUSCO Tooling Tools 1
¥5,520
¥5,520
Sale Sold out
Shipping calculated at checkout.
Catalog number: ER40-5.5 Features: ●The world's standard 16° taper (DIN6499/ISO15488) collet. ●100% inspected. Applications: ●For drilling, end milling, reaming, and tapping. Specifications: ●Gripping diameter (mm): 4.5-5.5 ●Outer diameter (mm): 41 ●Total length (mm): 46 ●Standard: ER40 ●4d tip core runout accuracy: Within 10μm ●16° taper collet ●DIN6499 ●ISO15488 Caution: ●Not suitable for roughing end milling. ●Use taps up to M8 as a guideline.
