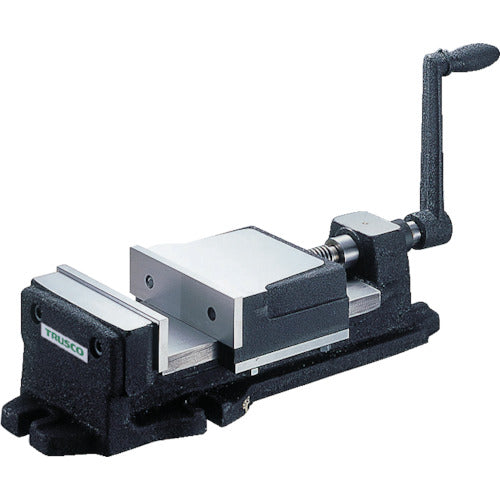

TRUSCO F-type milling vise 100mm MF-100 1 unit

Catalog number: MF-100 Features: ● Strong and durable design throughout. ● Attached to a milling machine and used primarily for rough machining. Specifications: ● Overall length (mm): 310 ● Overall width (mm): 123 ● Overall height (mm): 84 ● Jaw width (mm): 102 ● Jaw opening (mm): 65 ● Jaw depth (mm): 35 ● Clamping force (kN): 7.84 ● Mounting hole dimensions (mm): M10 Material/Finish: ● Ordinary cast iron (FC250) Caution: ● There are no guide blocks or holes for mounting the guide blocks. Please secure with a jig such as a T-slot nut or stud bolt.
