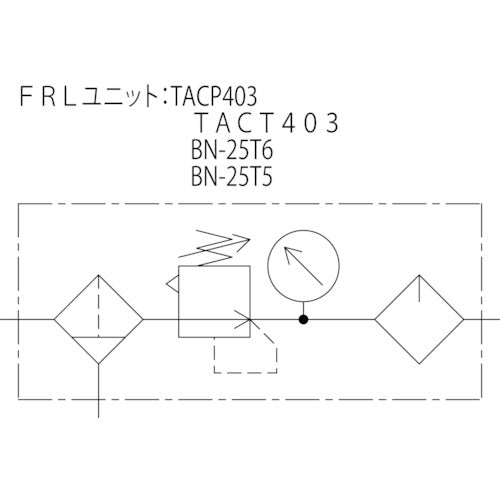

TRUSCO FRL unit, caliber Rc3/8 (set of 3) TACT403-10 1 S

Catalog number: TACT403-10 Features: ● A unit that compactly connects an air filter, regulator, and lubricator with a dedicated attachment. Specifications: ● Filtration accuracy (μm): 5 ● Operating pressure (MPa): 0.05 to 1.0 ● Processed air flow rate (m3/min): 1.0 ● Connection diameter: Rc3/8 ● Oil storage capacity (cm3): 200 ● Overall length (mm): 215 ● Overall width (mm): 230 ● Set pressure (MPa): 0.1 to 0.85 ● Drain discharge method: Manual (however, drains automatically when pressure falls below 0.05MPa) ● Fluid used: Air ● Fluid temperature (℃): 5 to 60 ● Oil used: Turbine oil type 1 (equivalent to ISO VG#32) ● Pressure gauge and bracket included
