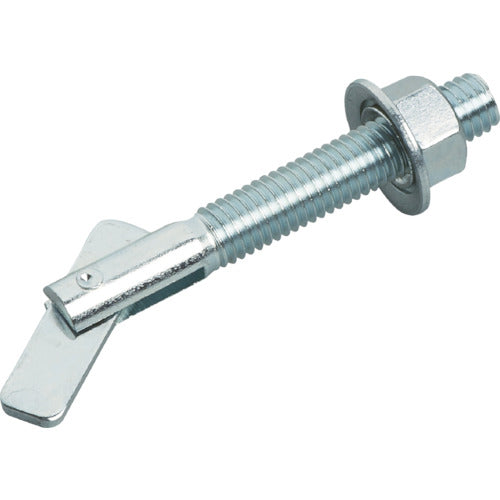

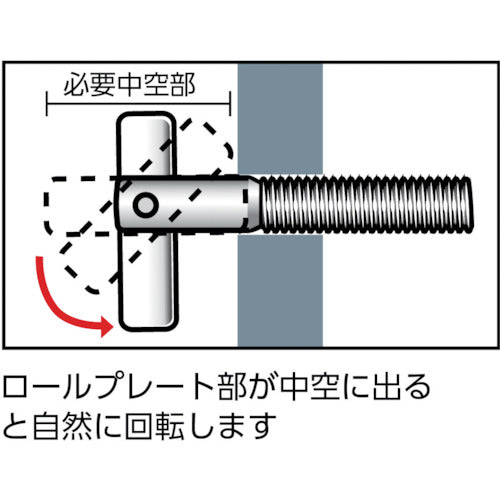

Catalog number: IT-1050BT Features: ●The screw body and roll plate have the same diameter, so installation can be done with the mounting device installed. ●For hollow walls. Applications: ●For hollow walls. ●Bracket fastening. Specifications: ●Screw designation: M10 ●Screw length (mm): 26 ●Pilot hole diameter (mm): 11.0 ●Plate length (mm): 36 ●Tightening plate thickness (mm): 14-23 ●Required hollow section (mm): 38 ●Maximum tensile load (kN): 5.2 ●Length (mm): 50 ●Bolt pack included Material/Finish: ●Steel ●Surface treatment: Trivalent chromate treatment Set contents/Accessories: ●Nut with seat Caution: ●The maximum tensile load is the value at the plate's yield strength.
