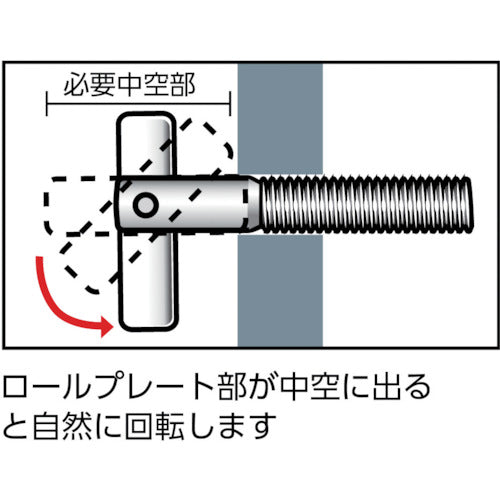

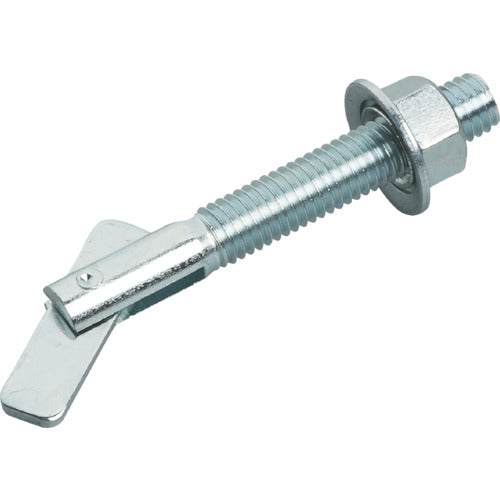

Catalog number: IT-850BT Features: ●The screw body and roll plate have the same diameter, so installation can be done with the mounting device in place. ●For hollow walls. Applications: ●For hollow walls. ●Bracket fastening. Specifications: ●Screw size: M8 ●Screw length (mm): 30 ●Pilot hole diameter (mm): 9.0 ●Plate length (mm): 30 ●Tightening plate thickness (mm): 12-28 ●Required hollow section (mm): 32 ●Maximum tensile load (kN): 4.4 ●Length (mm): 50 ●Bolt pack included Material/Finish: ●Steel ●Surface treatment: Trivalent chromate treatment Set contents/Accessories: ●Nut with seat Note: ●The maximum tensile load is the value at the plate's yield strength.
