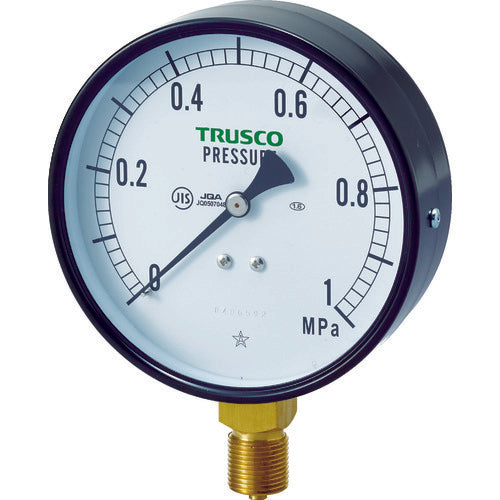

TRUSCO JIS general-purpose pressure gauge A type 100φ TPG100-1.0 1 unit

Catalog number: TPG100-1.0 Features: ●Case and cover are electrocoated for excellent corrosion resistance. ●Can be used for any of the three major fluids (air, oil, water) of pressure gauges. ●JIS B 7505-1 standard product. Specifications: ●Pressure range (MPa): 0.0 to 1.00 ●Minimum scale (MPa): 0.020 ●Name: AT3/8 x 100 x 1.00MPa ●Accuracy: ±1.6% FS ●Case shape: A ●Connection size: G3/8B ●Size (mm): 100 ●Size: 100mm ●Connection size: G3/8B Material/Finish: ●Bourdon tube: Brass ●Stud: Brass Note: ●Please check the thread size, thread shape (G thread or R thread), and pressure range (MPa) before ordering.
