TRUSCO NEW Lock Nut Trivalent Chromate M16 3 Pieces B766-0016 1 PK

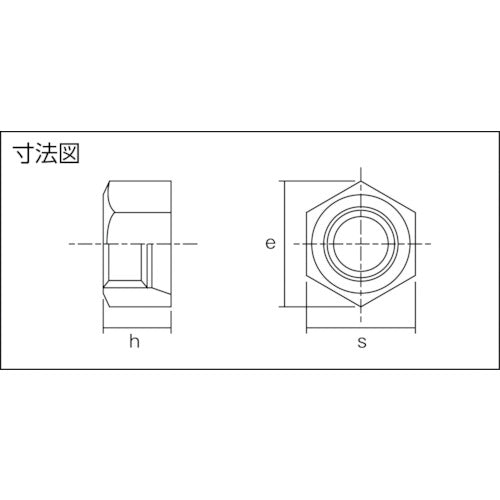

Catalog number: B766-0016 Features: * The combination of a concave nut and an eccentric convex washer provides a strong anti-loosening effect. * As it is a single nut, tightening can be done in one go with a general-purpose tool, so work is quicker and easier than with double nut or resistance types. Applications: * For structures that require a high level of safety, such as highways, bridges, and tunnels. Specifications: ●Nominal diameter: M16 x 2.00 ●Two-sided width dimension (mm): 24 ●Nut type: Anti-loosening nut ●Dimension (mm) e: 27.7 ●Dimension (mm) h: 16.0 ●Dimension (mm) m: 16.0 ●Dimension (mm) s: 24.0 ●Eccentric washer outer diameter (mm): 30.0 ●Eccentric washer thickness (mm): 2.0 ●Reference tightening torque (N・m): 134 ●Dimension (mm) E: 27.7 ●Package: Bolt pack (blister) Material/Finish: ●Nut body: Equivalent to SWCH10R ●Washer: Equivalent to SAE1060 (M12 and below), equivalent to S55C (M16 and above) ●Surface treatment: Trivalent chromate finish
