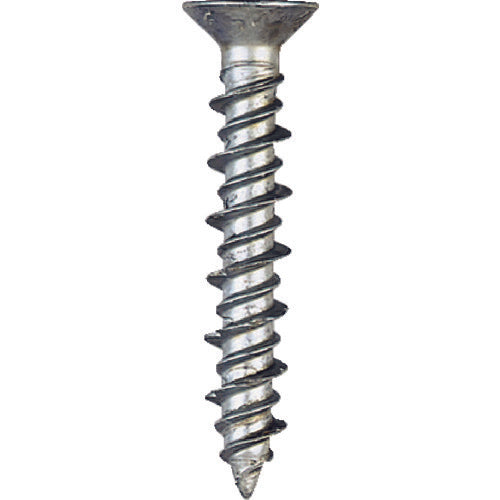

TRUSCO P-less anchor, flat head, steel, 5 x 45, pack of 20 (for concrete, blocks, and wood/screw fixing type) PFV-545BT 1 PK

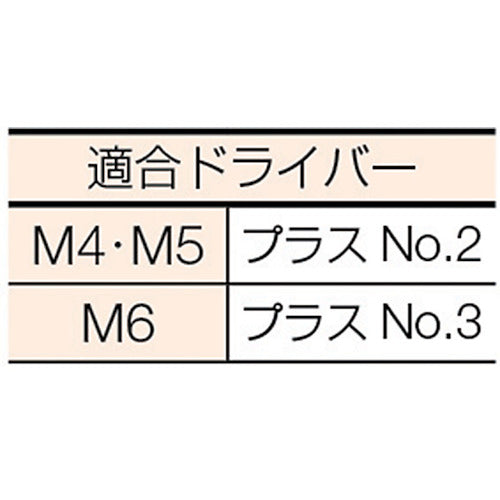

Catalog number: PFV-545BT Features: ● No plug is required, so the pilot hole can be small in diameter. ● Both high and low threads firmly attach to the mating material. Applications: ● For concrete, blocks, and wood. ● For wiring and piping saddle fastening. Specifications: ● Nominal diameter d (mm): 5 ● Pilot hole diameter (mm): 4.3 ● Embedded depth (mm): 30 ● Maximum tensile load (kN): 3.3 ● Drilling depth (mm): 55-t ● Length (mm): 45 ● Applicable screwdriver: Phillips No. 2 nominal diameter 4, 5 mm Phillips No. 3 nominal diameter 6 mm ● Packed Material/Finish: ● Steel ● Surface treatment: SV (Silver Big) treatment Note: ● Maximum tensile load is the value when the concrete strength is Fc21N/mm [square]. ● Drilling depth is the value of total length + 10mm-t (thickness of the attachment).
