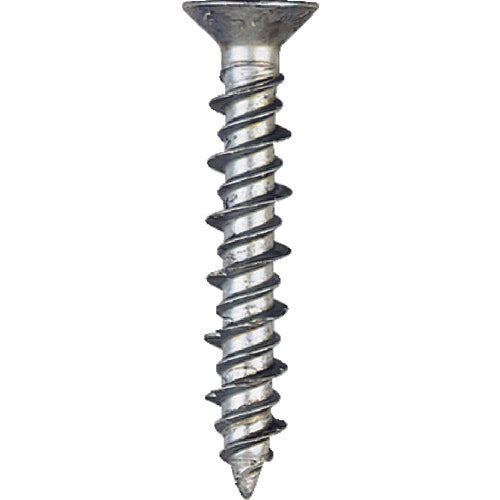

TRUSCO P-less anchor, flat head, steel, 6 x 100, 3 pieces (for concrete, blocks, and wood/screw fixing type) PFV-610BT 1 PK

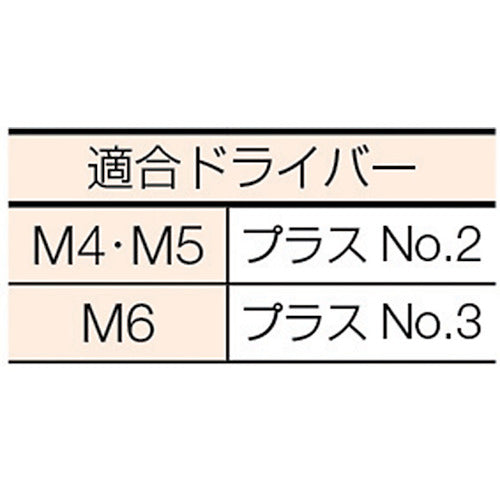

Catalog number: PFV-610BT Features: ● No plug required, so pilot holes can be small. ● Both high and low threads provide a firm bond to the mating material. Applications: ● For concrete, blocks, and wood. ● For wiring and piping saddle fastening. Specifications: ● Nominal diameter d (mm): 6 ● Pilot hole diameter (mm): 5.3 ● Embedded depth (mm): 40 ● Maximum tensile load (kN): 5.3 ● Drilling depth (mm): 110-t ● Length (mm): 100 ● Applicable screwdriver: Phillips No. 2 nominal diameter 4, 5 mm Phillips No. 3 nominal diameter 6 mm ● Packed Material/Finish: ● Steel ● Surface treatment: SV (Silver Big) treatment Note: ● Maximum tensile load is the value when the concrete strength is Fc21N/mm [square]. ● Drilling depth is the value of total length + 10mm-t (thickness of attachment).
